Sesebediswa sa ho Sebetsa ka Pneumatic se sebediswang bakeng sa valve ya bolo/ valve ya serurubele Setšoantšo se Hlahisitsweng

Sesebelisoa sa ho Sebetsa sa Pneumatic se sebelisetsoang valve ea bolo/ valve ea serurubele

ACT201

Qaqiso ea Sehlahisoa

Li-tag tsa Sehlahisoa

Likaroloana

Kakaretso ea Sehlahisoa

Mefuta e fapaneng e ka etsoa hore e lumellane le kopo ea hau, ka kaho ea 'mele, thepa le likarolo tse ling tse ntlafalitsoeng ho fihlela litlhoko tsa hau tsa ts'ebetso. Kaha re na le setifikeiti sa ISO 9001, re sebelisa mekhoa e hlophisehileng ea ho netefatsa boleng bo holimo, u ka kholiseha ka ts'epo e ikhethang le ts'ebetso ea ho tiisa nakong ea moralo oa thepa ea hau.

Tlhokahalo ea Tekheniki

· Sesebelisoa sa ho tjhesa sa Aluminium pneumatic ke sistimi ya rack le pinion ya 90° e sebetsang habeli kapa ya Spring return, e entsweng bakeng sa ho tsamaisa mefuta yohle ya di-valve tsa 1/4 turn kapa ditshebediso tsa 1/4 turn.
Qetello e ikgethang ya bokaholimo ba mmele (Ra 0,4 - 0,6 um) hammoho le tshebediso ya di-pad tsa antifriction tse entsweng ka thepa ya coefficient e tlase haholo ya friction (LAT LUB), e kentsweng ka hara dipiston, e thibela ho kopana ha tshepe le tshepe.
Li-actuator tsa I-FLOW li na le bophelo bo bolelele le bo se nang tlhokomelo.

Tlhaloso

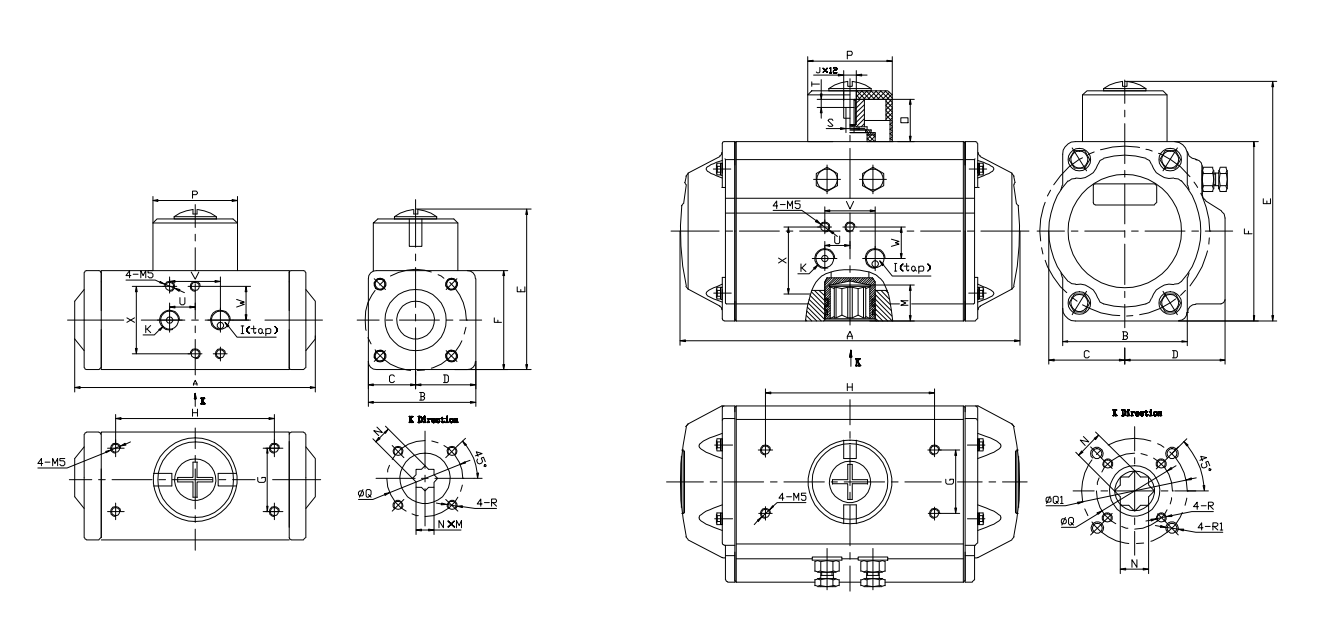

Foreimi ea mohala ea sehlahisoa

Lintlha tsa litekanyo

Mohlala	FLANGE L(ISO5211)	R/R1	A	B	C	D	E	F	G	H	I	J	K	O	P	S	T	U	V	W	X
	Q/Q1	M/N(mfn)
AT-32	FC3	M5	116	51	23	29	70	45	30	80	PF	M6	1/8”	20	40	4	4	12	24	16	32
	φ36	10/9
AT-50	F03/F05	M5/M6	146	47	29	42	99	69	30	80	PF	M6	1/8”	20	40	4	4	12	24	16	32
	φ36/φ50	13/11
AT-63	F03/F05	M5/M6	163	59	36	48	115	85	30	80	PF	M6	1/8”	20	40	4	4	12	24	16	32
	φ36/φ50	16/14
AT-75	F05/F07	M6/M8	214	68	43	51	132	102	30	80	PF	M6	1/8”	20	40	4	4	12	24	16	32
	φ50/φ70	19/17
AT-88	F05/F07	M6/M8	252	68	50	56	145	115	30	80	PF	M6	1/8”	20	40	4	4	12	24	16	32
	φ50/φ70	20/17
AT-100	F07/F10	M8/M10	270	95	56	64	157	127	30	80	PF	M6	1/4”	20	40	4	4	12	24	16	32
	φ70/φ102	24/22
AT-115	F07/F10	M8/M10	316	97	65	75	185	145	30	80	PF	M6	1/4”	30	62	4	4	12	24	16	32
	φ70/φ102	24/22
AT-125	F07/F10	M8/M10	354	97	69	79	197	157	30	80	PF	M6	1/4”	30	62	4	4	12	24	16	32
	φ70/φ102	29/27
AT-145	F10/F12	M10/M12	418	115	80	87	218	178	30	80/130	PF	M6	1/4”	30	62	4	4	12	24	16	32
	φ102/φ125	30/27
AT-160	F10/F12	M10/M12	450	118	89	104	240	200	30	80/130	PF	M6	1/4”	30	80	4	4	12	24	16	32
	φ102/φ125	30/27
AT-190	F10/F12	M10/M12	518	139	103	105	272	232	30	80/130	PF	M6	1/4”	30	80	4	4	12	24	16	32
